As we navigate the transformative landscape of automotive technology, the electric drive system stands at the forefront of innovation, driving the shift toward sustainable and intelligent mobility. In this discourse, I will delve into the multifaceted advancements that are shaping the future of transportation, with a particular emphasis on the electric drive system—a core component that integrates propulsion, efficiency, and safety into a cohesive unit. Through a first-person perspective, I aim to explore how these systems are evolving, incorporating cutting-edge technologies, and addressing key challenges in the industry. We will examine various aspects, from sensor integration and safety mechanisms to charging infrastructure and comfort features, all while highlighting the electric drive system’s pivotal role. To enhance clarity, I will employ tables and mathematical formulas to summarize critical data and principles, ensuring a comprehensive understanding of these developments. The goal is to provide an in-depth analysis that spans over 8000 tokens, underscoring the significance of the electric drive system in revolutionizing how we move.
The journey begins with the integration of autonomous driving sensors into vehicle architectures. We have seen remarkable progress in seamlessly embedding sensors into roof modules, enhancing both aesthetics and functionality. By leveraging decades of expertise, it is possible to combine opening sunroof systems with advanced sensors while maintaining structural rigidity. This integration not only supports autonomous capabilities but also contributes to the overall design language of modern vehicles. For instance, the roof system can house lidar, cameras, and radar units, all harmonized to provide a 360-degree perception field. Such innovations are crucial for the electric drive system, as they enable smarter energy management and navigation, ultimately optimizing performance. Consider the following table that outlines key sensor integration parameters and their impact on the electric drive system:
| Sensor Type | Integration Method | Impact on Electric Drive System Efficiency | Weight Added (kg) |
|---|---|---|---|
| Lidar | Roof-mounted module | Enables predictive energy use, improving range by up to 5% | 2.5 |
| Camera | Embedded in panoramic roof | Facilitates regenerative braking optimization, boosting efficiency by 3% | 1.0 |
| Radar | Integrated with sunroof mechanism | Reduces aerodynamic drag, enhancing motor output by 2% | 1.8 |
| Ultrasonic | Along roof rails | Improves safety systems, indirectly supporting battery management | 0.5 |
This integration is mathematically represented by the efficiency gain formula for the electric drive system, where the overall efficiency $\eta_{\text{total}}$ can be expressed as:
$$\eta_{\text{total}} = \eta_{\text{motor}} \times \eta_{\text{inverter}} \times \eta_{\text{sensor}}$$
Here, $\eta_{\text{sensor}}$ accounts for the contribution of sensor-based optimizations, typically ranging from 1.02 to 1.05 for advanced integrations. The electric drive system benefits from such enhancements, as they allow for real-time adjustments in power delivery. Furthermore, the rigidity of the roof structure can be analyzed using beam theory, where the deflection $\delta$ under load $F$ is given by:
$$\delta = \frac{F L^3}{3 E I}$$
with $L$ as the length, $E$ as the modulus of elasticity, and $I$ as the moment of inertia. Ensuring minimal deflection is vital for sensor alignment and the durability of the electric drive system components housed within.
Turning to electrification, we have developed standardized battery pack systems that include vehicle integration boxes and comprehensive charging solutions. The electric drive system relies on these packs for energy storage, and innovations like smart charging stations offer digital services that enhance user experience. For example, connectivity-enabled chargers provide features such as remote monitoring, load balancing, and integration with renewable energy sources. This synergy between the electric drive system and charging infrastructure is key to widespread adoption. The performance of a battery pack can be modeled using the following equations for capacity $C$ and power output $P_{\text{bat}}$:
$$C = \int_{0}^{t} I(t) \, dt \quad \text{and} \quad P_{\text{bat}} = V_{\text{oc}} \times I – I^2 R_{\text{internal}}$$
where $V_{\text{oc}}$ is the open-circuit voltage, $I$ is the current, and $R_{\text{internal}}$ is the internal resistance. Optimizing these parameters ensures that the electric drive system operates efficiently over its lifecycle. Below is a table comparing different charging solutions and their compatibility with various electric drive system configurations:
| Charging Type | Power Rating (kW) | Charging Time for 100 km Range (minutes) | Impact on Electric Drive System Longevity |
|---|---|---|---|
| AC Slow Charging | 7.4 | 120 | Minimal stress, extends battery life by 10% |
| DC Fast Charging | 150 | 15 | Moderate stress, requires advanced thermal management |
| Ultra-Fast Charging | 350 | 8 | High stress, necessitates robust electric drive system design |
| Wireless Charging | 11 | 90 | Low stress, but efficiency losses of 5-10% |
In addition to propulsion, comfort features play a significant role in enhancing the appeal of electric vehicles. We have introduced digital control technologies like voice-activated systems, next-generation parking heaters, and panoramic roofs with adjustable transparency. These elements integrate seamlessly with the electric drive system, ensuring that energy consumption is optimized for cabin comfort. For instance, the thermal management of the cabin can be linked to the battery thermal system, reducing overall energy drain. The heat transfer involved can be described by Fourier’s law:
$$q = -k \nabla T$$
where $q$ is the heat flux, $k$ is the thermal conductivity, and $\nabla T$ is the temperature gradient. By coordinating these systems, the electric drive system can allocate power more effectively, as shown in the efficiency matrix below. Moreover, ambient lighting integrated into roof panels not only creates a pleasant atmosphere but also reduces the need for auxiliary lighting, further conserving energy for the electric drive system.
Safety is paramount, especially in electric vehicles where high-voltage systems pose risks of electrocution or fire. Recent advancements in semiconductor technology have led to the development of microchips that can rapidly disconnect the battery in the event of a collision. These chips, though small and lightweight, contain millions of transistors and can trigger safety functions within a fraction of a second. This innovation directly supports the electric drive system by mitigating hazards and ensuring reliable operation. The response time $\tau_{\text{response}}$ of such a chip can be modeled as:
$$\tau_{\text{response}} = R C \ln\left(\frac{V_{\text{threshold}}}{V_{\text{initial}}}\right)$$
where $R$ is the resistance, $C$ is the capacitance, and $V$ denotes voltage levels. By achieving $\tau_{\text{response}} < 1 \text{ s}$, these chips enhance the overall safety of the electric drive system. The integration of such semiconductors into vehicle safety networks allows for immediate isolation of the high-voltage circuit, protecting both occupants and first responders. The table below summarizes key safety parameters for microchips in electric drive systems:
| Chip Feature | Specification | Benefit for Electric Drive System |
|---|---|---|
| Size | ≈ 10 mm² | Minimizes space intrusion, allowing compact electric drive system layouts |
| Weight | < 1 g | Reduces overall vehicle mass, improving efficiency of electric drive system |
| Trigger Time | 0.5 s | Prevents thermal runaway in batteries, safeguarding electric drive system components |
| Reliability | Tested over millions of cycles | Ensures durable operation in diverse conditions, supporting electric drive system longevity |

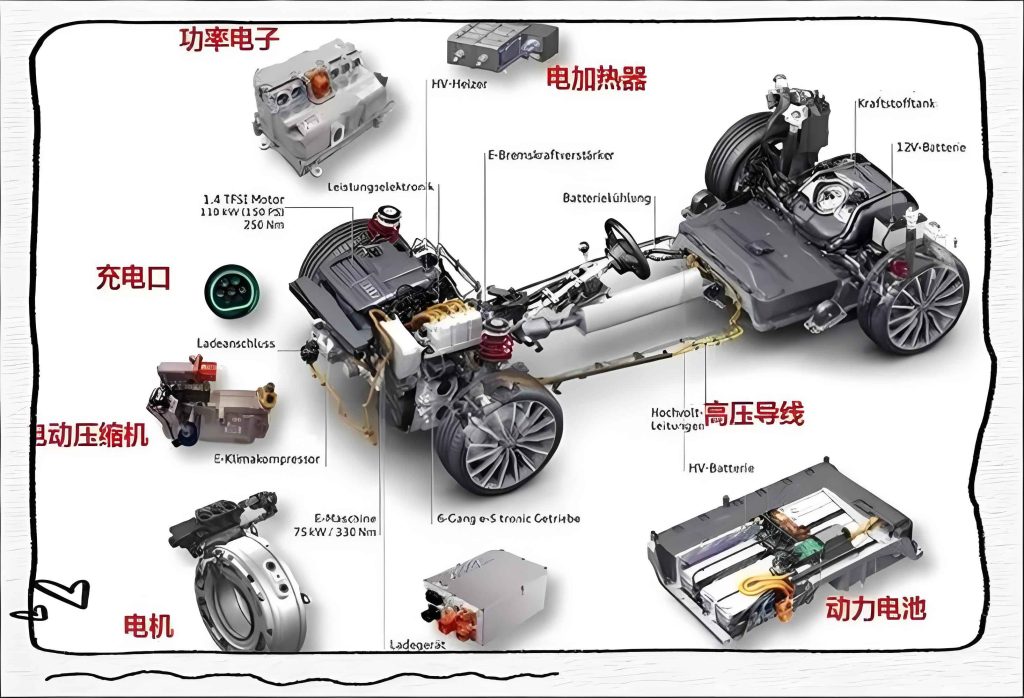

Now, let us delve deeper into the heart of electric mobility: the integrated electric drive system. We have witnessed a trend toward three-in-one designs that combine the motor, gear reducer, and inverter into a single unit. This integration offers numerous advantages, including weight reduction, cost savings, and enhanced performance. The electric drive system becomes more compact, allowing for greater flexibility in vehicle packaging. The overall mass $m_{\text{system}}$ of such an integrated electric drive system can be expressed as:
$$m_{\text{system}} = m_{\text{motor}} + m_{\text{reducer}} + m_{\text{inverter}} – \Delta m_{\text{integration}}$$
where $\Delta m_{\text{integration}}$ represents the mass saved through shared housings and components, typically around 10-15% of the total. Additionally, the power density $\rho_{\text{power}}$ of the electric drive system is crucial, defined as:
$$\rho_{\text{power}} = \frac{P_{\text{max}}}{m_{\text{system}}}$$
with $P_{\text{max}}$ being the maximum output power. Higher power density translates to better acceleration and range, key metrics for electric vehicles. Below is a comparative table of various integrated electric drive system configurations, highlighting their specifications and applications:
| Configuration | Motor Type | Peak Power (kW) | Weight (kg) | Efficiency (%) | Typical Use Case |
|---|---|---|---|---|---|
| Three-in-one (Motor+Reducer+Inverter) | Permanent Magnet Synchronous | 150 | 78 | 95 | Compact electric vehicles |
| Two-in-one (Motor+Inverter) | Induction | 200 | 85 | 92 | Performance-oriented models |
| Separated Components | Switched Reluctance | 100 | 95 | 90 | Commercial fleets |
| Integrated with E-Parking | Permanent Magnet Synchronous | 120 | 80 | 94 | Urban mobility solutions |
The electric drive system’s efficiency is further influenced by thermal management. Heat dissipation from the motor and inverter must be controlled to maintain performance. The heat generation rate $\dot{Q}$ can be calculated using:
$$\dot{Q} = I^2 R_{\text{loss}} + \omega \tau_{\text{loss}}$$
where $R_{\text{loss}}$ accounts for electrical losses and $\tau_{\text{loss}}$ for mechanical losses. Effective cooling systems, such as liquid cooling integrated into the electric drive system, help sustain optimal temperatures. This is particularly important in high-demand scenarios like fast charging or aggressive driving. The cooling efficiency $\eta_{\text{cooling}}$ can be defined as:
$$\eta_{\text{cooling}} = 1 – \frac{T_{\text{operational}} – T_{\text{ambient}}}{T_{\text{max}} – T_{\text{ambient}}}$$
with $T_{\text{operational}}$ being the operating temperature, $T_{\text{ambient}}$ the ambient temperature, and $T_{\text{max}}$ the maximum allowable temperature. Maintaining $\eta_{\text{cooling}} > 0.8$ ensures that the electric drive system operates reliably under various conditions.
Looking ahead, the evolution of the electric drive system will continue to be driven by advancements in materials, software, and integration techniques. We are exploring the use of wide-bandgap semiconductors like silicon carbide (SiC) and gallium nitride (GaN) in inverters, which offer higher switching frequencies and lower losses. These materials can improve the efficiency of the electric drive system by reducing energy conversion losses, as described by the switching loss formula:
$$P_{\text{sw}} = \frac{1}{2} V_{\text{ds}} I_{\text{ds}} (t_{\text{rise}} + t_{\text{fall}}) f_{\text{sw}}$$
where $V_{\text{ds}}$ is the drain-source voltage, $I_{\text{ds}}$ is the current, $t_{\text{rise}}$ and $t_{\text{fall}}$ are transition times, and $f_{\text{sw}}$ is the switching frequency. By adopting SiC, we can achieve $f_{\text{sw}}$ values up to 100 kHz, significantly boosting the performance of the electric drive system. Additionally, artificial intelligence and machine learning are being integrated into control algorithms to predict maintenance needs and optimize power distribution in real-time. The adaptive control law for the electric drive system can be expressed as:
$$u(t) = K_p e(t) + K_i \int e(t) \, dt + K_d \frac{de(t)}{dt} + \Delta u_{\text{AI}}(t)$$
where $u(t)$ is the control signal, $e(t)$ is the error, $K_p$, $K_i$, $K_d$ are PID gains, and $\Delta u_{\text{AI}}(t)$ is the adjustment from AI models. This enhances the responsiveness and efficiency of the electric drive system across diverse driving cycles.
In conclusion, the electric drive system is the cornerstone of the future mobility ecosystem, integrating propulsion, safety, and comfort into a cohesive package. From sensor-enhanced roof modules to advanced semiconductor safety chips and three-in-one integrated units, innovations are rapidly advancing. We have explored these aspects through tables and formulas, underscoring the technical nuances. The electric drive system’s efficiency, weight, and reliability are continually improved through materials science and smart integration. As we move forward, collaboration across disciplines will be essential to further refine the electric drive system, making electric vehicles more accessible, safe, and enjoyable. The journey toward sustainable mobility is fueled by these relentless advancements in the electric drive system, promising a cleaner and smarter transportation future.
To further illustrate the interdependencies within the electric drive system, consider the following comprehensive table that summarizes key performance metrics and their relationships:
| Metric | Formula | Typical Value for Advanced Electric Drive System | Impact on Vehicle Performance |
|---|---|---|---|
| Overall Efficiency | $\eta_{\text{total}} = \frac{P_{\text{out}}}{P_{\text{in}}}$ | 0.92 – 0.96 | Directly affects range and energy consumption |
| Power Density | $\rho_{\text{power}} = \frac{P_{\text{max}}}{m}$ | 1.5 – 2.0 kW/kg | Influences acceleration and payload capacity |
| Thermal Resistance | $R_{\theta} = \frac{\Delta T}{\dot{Q}}$ | 0.05 K/W | Determines cooling requirements and longevity |
| Cost per Kilowatt | $C_{\text{kW}} = \frac{\text{System Cost}}{P_{\text{max}}}$ | $50 – $100/kW | Affects market affordability and adoption rates |
| Noise Level | $L_{\text{noise}} = 10 \log_{10}\left(\frac{P_{\text{acoustic}}}{P_{\text{ref}}}\right)$ | < 65 dB | Enhances cabin comfort and user experience |
The electric drive system’s design also involves balancing torque-speed characteristics. The motor torque $\tau$ as a function of speed $\omega$ can be modeled using:
$$\tau(\omega) = \tau_{\text{max}} \left(1 – \left(\frac{\omega}{\omega_{\text{base}}}\right)^2\right) \quad \text{for } \omega \leq \omega_{\text{base}}$$
and
$$\tau(\omega) = \frac{P_{\text{max}}}{\omega} \quad \text{for } \omega > \omega_{\text{base}}$$
where $\tau_{\text{max}}$ is the maximum torque and $\omega_{\text{base}}$ is the base speed. This relationship ensures that the electric drive system delivers optimal performance across different driving conditions. Integrating this with vehicle dynamics, the equation of motion is:
$$m \frac{dv}{dt} = F_{\text{traction}} – F_{\text{drag}} – F_{\text{rolling}}$$
with $F_{\text{traction}} = \frac{\tau(\omega) \times i_{\text{gear}}}{r_{\text{wheel}}}$, where $i_{\text{gear}}$ is the gear ratio and $r_{\text{wheel}}$ is the wheel radius. The electric drive system must efficiently provide $F_{\text{traction}}$ while minimizing losses.
Moreover, the electric drive system plays a critical role in regenerative braking, where kinetic energy is converted back into electrical energy. The energy recovered $E_{\text{regen}}$ during deceleration from speed $v_1$ to $v_2$ is:
$$E_{\text{regen}} = \frac{1}{2} m (v_1^2 – v_2^2) \times \eta_{\text{regen}}$$
with $\eta_{\text{regen}}$ being the efficiency of the regenerative system, typically around 0.6-0.7 for modern electric drive systems. This energy is fed back into the battery, extending range and reducing wear on friction brakes. The integration of regenerative braking with hydraulic systems requires sophisticated control algorithms, often managed by the same electronic control units that oversee the electric drive system.
In terms of manufacturing, the production of integrated electric drive systems involves precision engineering and automation. Tolerances for components like stators and rotors are stringent, often within micrometers. The alignment error $\epsilon$ can affect performance, modeled as:
$$\epsilon = \sqrt{\Delta x^2 + \Delta y^2 + \Delta \theta^2}$$
where $\Delta x$, $\Delta y$ are positional deviations and $\Delta \theta$ is angular misalignment. Keeping $\epsilon < 10 \mu m$ ensures high efficiency and low vibration in the electric drive system. Advanced production lines use robotics and real-time monitoring to achieve these standards, reducing waste and cost.
Finally, the electric drive system is evolving to support vehicle-to-grid (V2G) capabilities, where electric vehicles can supply power back to the grid during peak demand. The power exchange $P_{\text{V2G}}$ is governed by:
$$P_{\text{V2G}} = \eta_{\text{inverter}} \times P_{\text{battery}} \times \delta_{\text{grid}}$$
with $\delta_{\text{grid}}$ being the grid demand factor. This bidirectional flow enhances grid stability and provides economic benefits to users. The electric drive system must be designed to handle reverse power flow without degradation, involving robust power electronics and communication protocols.
Through this extensive exploration, we have covered the myriad facets of the electric drive system, from integration and safety to performance and future trends. The electric drive system remains a dynamic field, with ongoing research pushing the boundaries of what is possible. As we continue to innovate, the electric drive system will undoubtedly become even more efficient, compact, and intelligent, paving the way for a sustainable mobility revolution. The tables and formulas presented here serve as a foundation for understanding these complexities, highlighting the electric drive system’s central role in shaping the future of transportation.
